What is lug width, and how to measure yours
Founder & CEO, Smartlet - CentraleSupelec engineer - Concours Lepine 2025, Awarded - CES 2026
Contents
Lug width is the inside distance between the two lugs of a watch, where the strap or bracelet attaches, measured in millimetres. Measure it with a caliper or a fine ruler across the gap between the lugs, strap removed, or check your reference in the Smartlet lug width finder. Most watches sit between 18 and 22 mm. The rest of this guide is the detail behind those two sentences: how to measure without fooling yourself, why some watches land on odd numbers, and what the number decides.
- Definition. The inside gap between the lugs, where the spring bar passes, in millimetres.
- How to measure. Strap removed, caliper or fine ruler, inside edge to inside edge, rounded to the nearest millimetre.
- Common sizes. 18 to 22 mm for most watches; dress watches run narrow, divers and sports watches wide.
- Odd sizes exist. 19 mm and 21 mm are real and common on some brands.
- What it decides. Every strap, bracelet and watch adapter is sized to it.
What lug width is
The lugs are the two horns on either side of the case, at twelve and six o'clock. A spring bar runs between them and holds the strap or bracelet. Lug width is the distance between the inside faces of those two lugs: the space the end of the strap has to fill.
It is not the case diameter, and it is not the lug-to-lug length, which runs from the tip of the top lugs to the tip of the bottom ones and tells you how large a watch wears. A 40 mm watch can have a 20 mm or a 22 mm lug width, and the difference changes the strap you can fit, not the size of the dial.
Lug width is a strap measurement. Case diameter is a dial measurement. Do not mix them up.
How to measure your lug width
- Remove the strap or bracelet if you can. With the strap on, you measure the strap, which may have been cut narrower than the gap.
- Use a digital caliper if you have one; a fine steel ruler works too. Measure from the inside face of one lug to the inside face of the other, at the spring bar holes.
- Read in millimetres and round to the nearest whole number. A reading of 19.8 mm is a 20 mm watch.
- Check both ends. Top and bottom lugs are almost always the same, but it costs nothing to confirm.
No tools at hand? The reference number is enough. Type it into the lug width finder, which covers more than 55,000 references, or look up the model in our brand compatibility guide.
Measuring from the outer edges of the lugs, or guessing from the case diameter. Both give a number that looks plausible and is wrong.

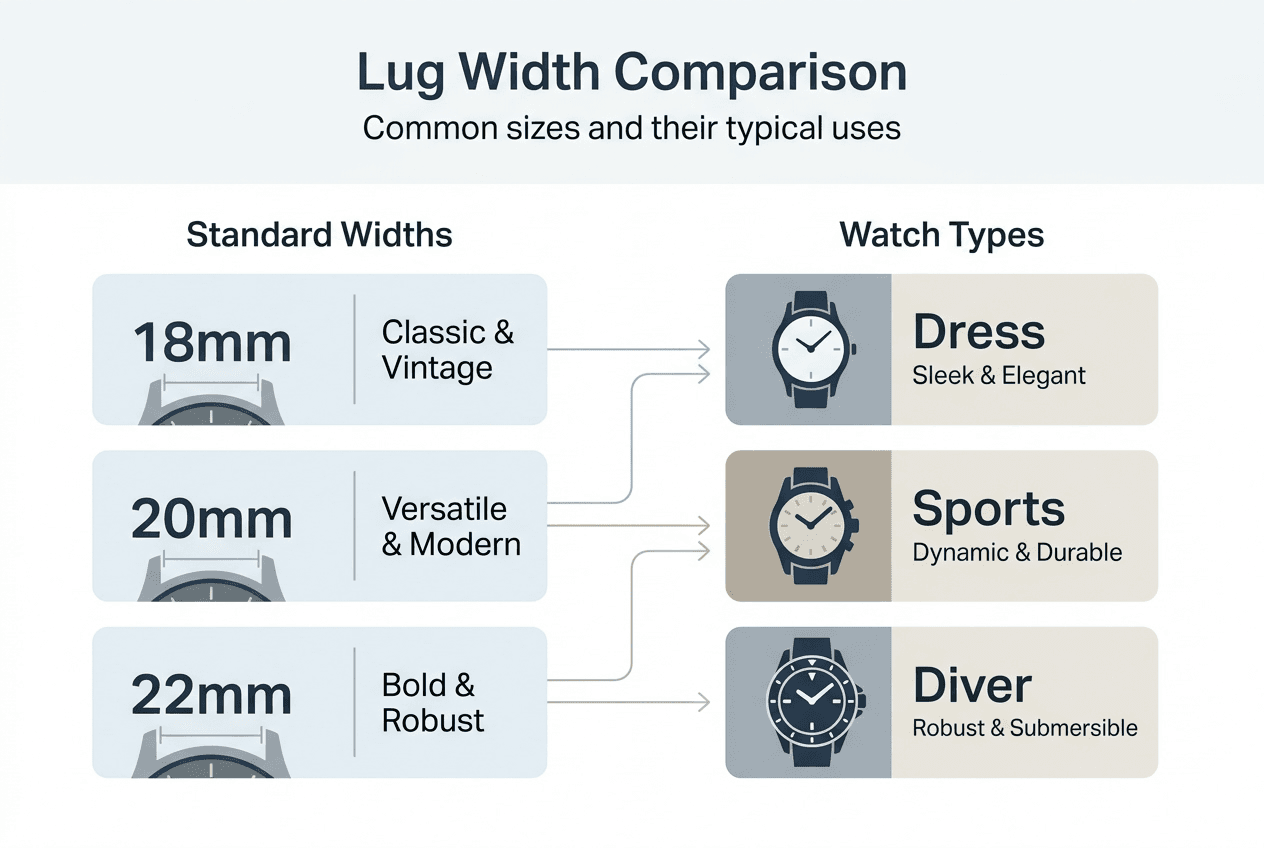

Common lug widths, and the odd ones
There is no rule that forces a number, only habits. Dress watches and smaller vintage pieces often sit at 16 to 18 mm, everyday and sports watches at 20 mm, divers and tool watches at 20 to 22 mm, and larger sports watches up to 24 mm. Odd widths are real: 19 mm and 21 mm are common on several brands.
| Watch | Lug width |
|---|---|
| Omega Speedmaster Professional Moonwatch | 20 mm |
| Tudor Black Bay 58 | 20 mm |
| Omega Aqua Terra 41 mm | 20 mm |
| Omega Aqua Terra 38 mm | 19 mm |
| Rolex Submariner, 41 mm case | 21 mm |
| Blancpain Fifty Fathoms | 23 mm |
Two watches from the same family can differ, as the Aqua Terra shows. Always check the exact case size, and when in doubt, the reference. Model by model detail lives in pages such as the Tudor Black Bay 58 lug width guide.
Taper, lug shape and fat spring bars
Lug width says nothing about how a strap narrows toward the buckle, which is taper, a matter of style. It also says nothing about the shape of the lugs or the spring bar itself. Most watches use standard spring bars; some tool watches use thicker ones, known as fat spring bars, and integrated designs such as the Tissot PRX have no standard lugs at all (the lug hole and the pin, and lug styles explained).
Smartwatches have lug widths too, or not
Many smartwatches and trackers use standard spring bars, with a lug width like any watch: 20 or 22 mm is typical on Garmin Forerunner models and on Samsung Galaxy Watch models up to the Watch 7. The Apple Watch has no lugs at all. Its bands slide into a slot, grouped by case size, so asking for its lug width makes no sense; what matters is the case size group (Apple Watch compatibility).
What your lug width decides with a Smartlet
The Smartlet is a metal link bracelet that holds a mechanical watch on top of the wrist and a smartwatch underneath. On the mechanical watch, two watch adapters seat in the lug holes in place of the spring bars, and their width is chosen at order to match your lug width. The Smartlet takes watches from 18 to 24 mm with standard spring bars; 23 mm is coming soon. Both Apple Watch adapter sizes are in the box.
The quickest check is the lug width finder: type your watch, and it tells you the width and the Smartlet that fits. For a smartwatch, see the smartwatch compatibility index.
Smartlet, Bronze Medal at Concours Lepine 2025 and shown at CES 2026, is sized to your lug width from 18 to 24 mm.
